OIL FILTER TAKE OFF PLATE, LS PRE-07, 13"/16" -16, ENV-162
Pickup available at 37-39 Glenvale Crescent
Usually ready in 2 hours
DETAILS
- Replaces your oil filter to allow for the installation of a remote oil filter system
- Features a 1/8" NPT port for a pressure or temperature sensor
- Outer surface is knurled for easy installation and removal by hand
- Standard -10AN O-ring boss ports are used for the inlet and outlet and optional adapter fittings are available for -8AN, -10AN and -12AN
- Robust square profile Viton O-ring for a reliable seal

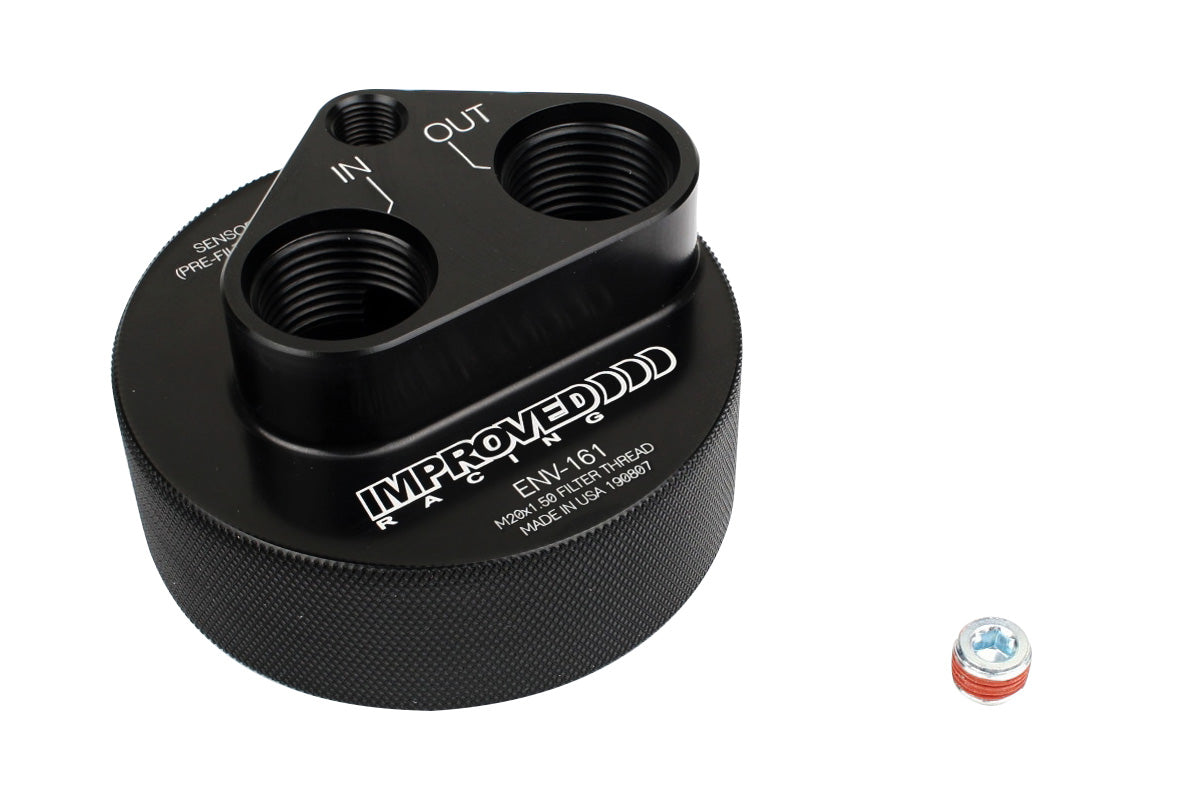

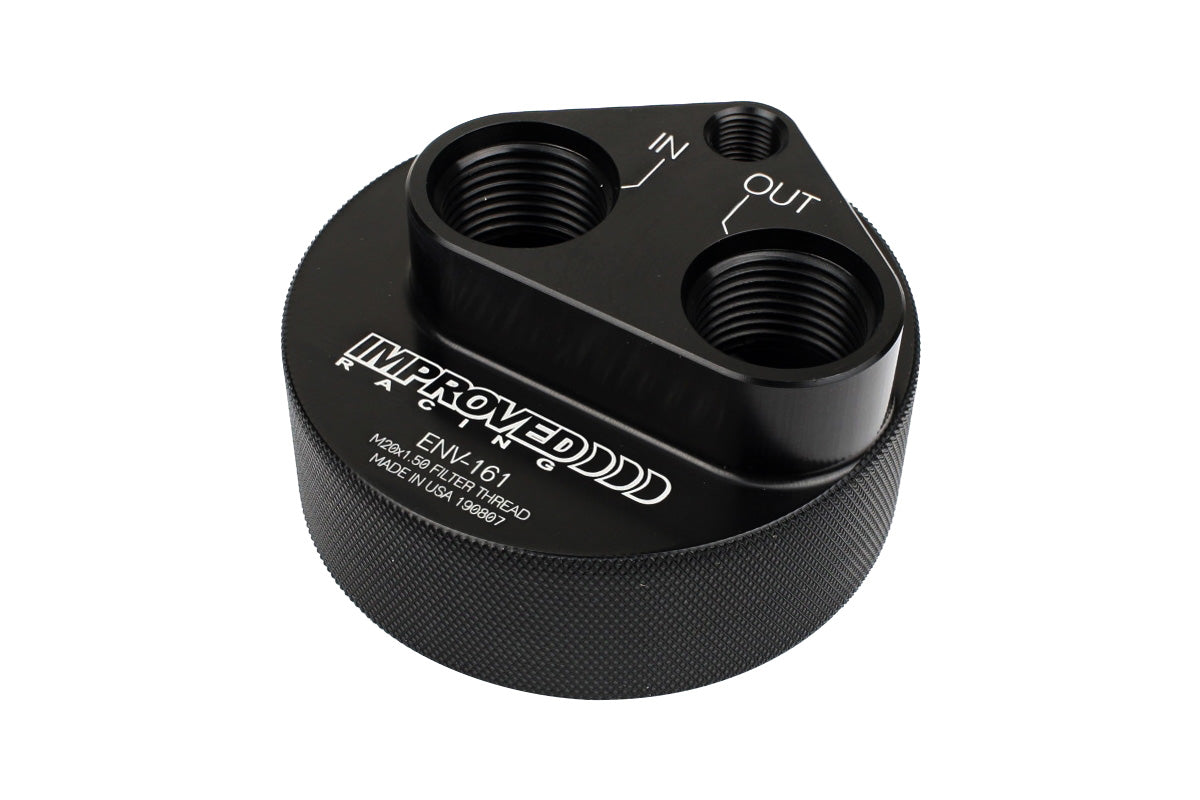

Improved Racing's billet remote take-off plate replaces your oil filter to allow for the installation of a remote oil filter system.
This compact, high-flow spin-on adapter is available in four oil filter thread sizes for compatibility with most vehicles. It features a 1/8" NPT port for a pressure or temperature sensor. The outer surface is knurled for easy installation and removal by hand. High-flow female -10AN O-ring boss ports are used for the inlet and outlet and optional adapter fittings are available for -8AN, -10AN and -12AN lines. The Viton O-ring has a square profile, which maximizes sealing surface.
Remote oil filter systems allow for convenient access to your filter and permit the use of larger, higher-flowing oil filters. Please note a remote oil filter pedestal is required for mounting an oil filter when using this take-off adapter. Improved Racing thermostatic and non-thermostatic remote oil filter heads are available separately.
Features and Benefits
- CNC-machined from lightweight aluminum, Type II black anodized, laser-marked
- 1/8" NPT sensor port
- Two female -10AN O-ring boss fitting ports
- Robust square profile Viton O-ring for a reliable seal
Technical Specifications
- Filter thread sizes: 3/4"-16, 13/16''-16, M20x1.5 and M22x1.5
- Dimensions: 3.200" OD x 1.750" Height
- Fitting Ports: 2 x -10AN SAE J1926 / MS16142 O-ring boss
- Material: 6061-T6 aluminum
- O-ring inner diameter: 2.484"
- O-ring outer diameter: 2.762"
- Sensor Ports: 1 x 1/8” NPT
- Sensors and oil ports are always, and only seeing filtered oil
- Plating: MIL-A-8625 Type II black anodized and laser-marked
- Weight: 6 oz
Includes
- 1x Universal billet remote oil filter take-off plate
- 1x square Viton O-ring
- 1x 1/8" NPT plugs with thread sealant

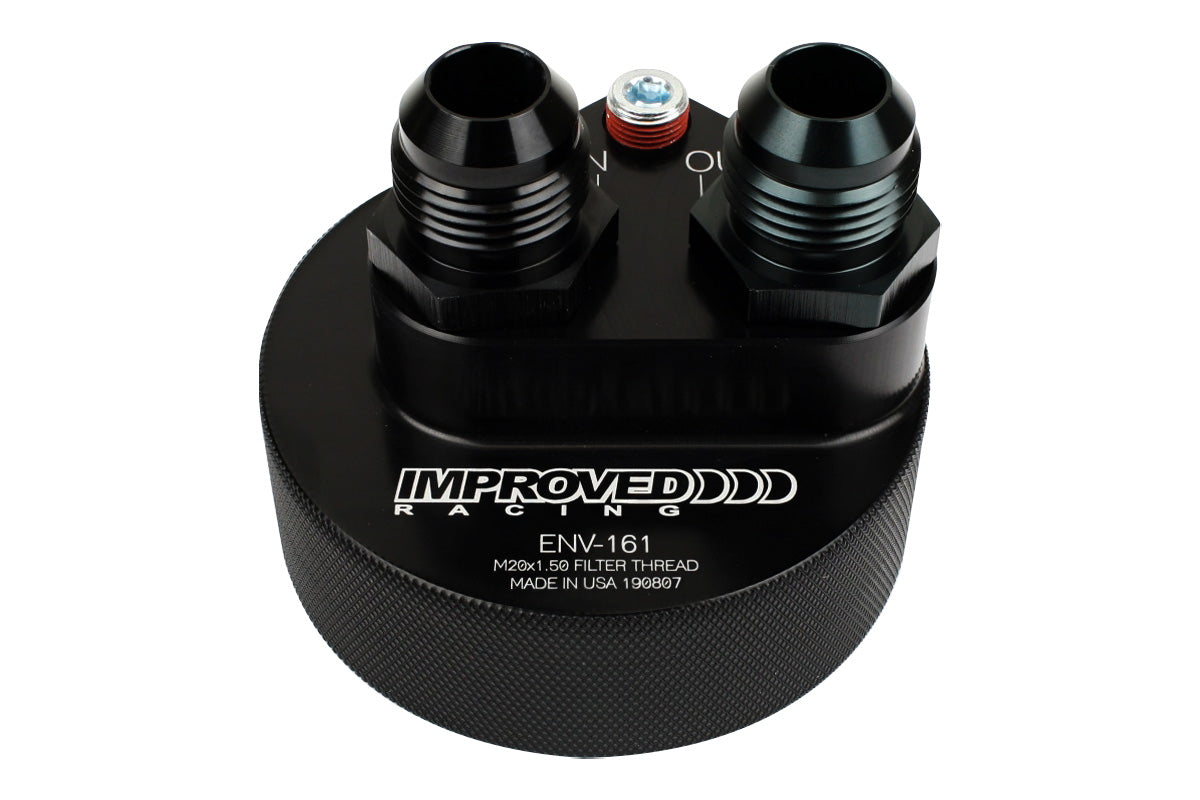

Optional Adapter Fittings Available in -8AN, -10AN, or -12AN
Applications
- Fits filter pedestals for filters up to 2.8" in gasket outer diameter.
- Spacer kit part number ENV-118 or ENV-168 is required for Gen I-II Chevrolet small block (SBC), Mark 1-4 and Gen 5-6 V8 Chevrolet big-block (BBC) engines.
Be sure to check the filter thread for your vehicle before ordering. Guidelines for common applications are listed below.
| Application | Thread Size |
|---|---|
|
3/4-16 |
|
M20x1.50 |
|
13/16-16 |
|
