HP Tuners
OBDII Adapter Cable – Yamaha Marine
Pickup available at 37-39 Glenvale Crescent
Usually ready in 2 hours
OVERVIEW
Connect directly to supported Yamaha marine applications using HP Tuners’ purpose-built Yamaha Outboard & WaveRunner OBDII Adapter Cables.
These marine adapter cables allow professional tuners, marine technicians, and hands-on owners to connect MPVI3 or MPVI4 interfaces to supported Yamaha marine ECMs for calibration writing.
Unlike standard diagnostic adapters, these cables include integrated battery clips that provide stable external power to the ECM during the calibration write process. Supplying power to the ECM is required in marine applications because the engine must remain off during the process.
Whether you are performing calibration work for performance improvements, improved throttle response, or enhanced fuel efficiency, these Yamaha marine adapter cables provide a reliable connection between your HP Tuners interface and the engine’s ECM.
AVAILABLE CABLE OPTIONS
This product page includes the following Yamaha outboard & Waverunner flashing cables:

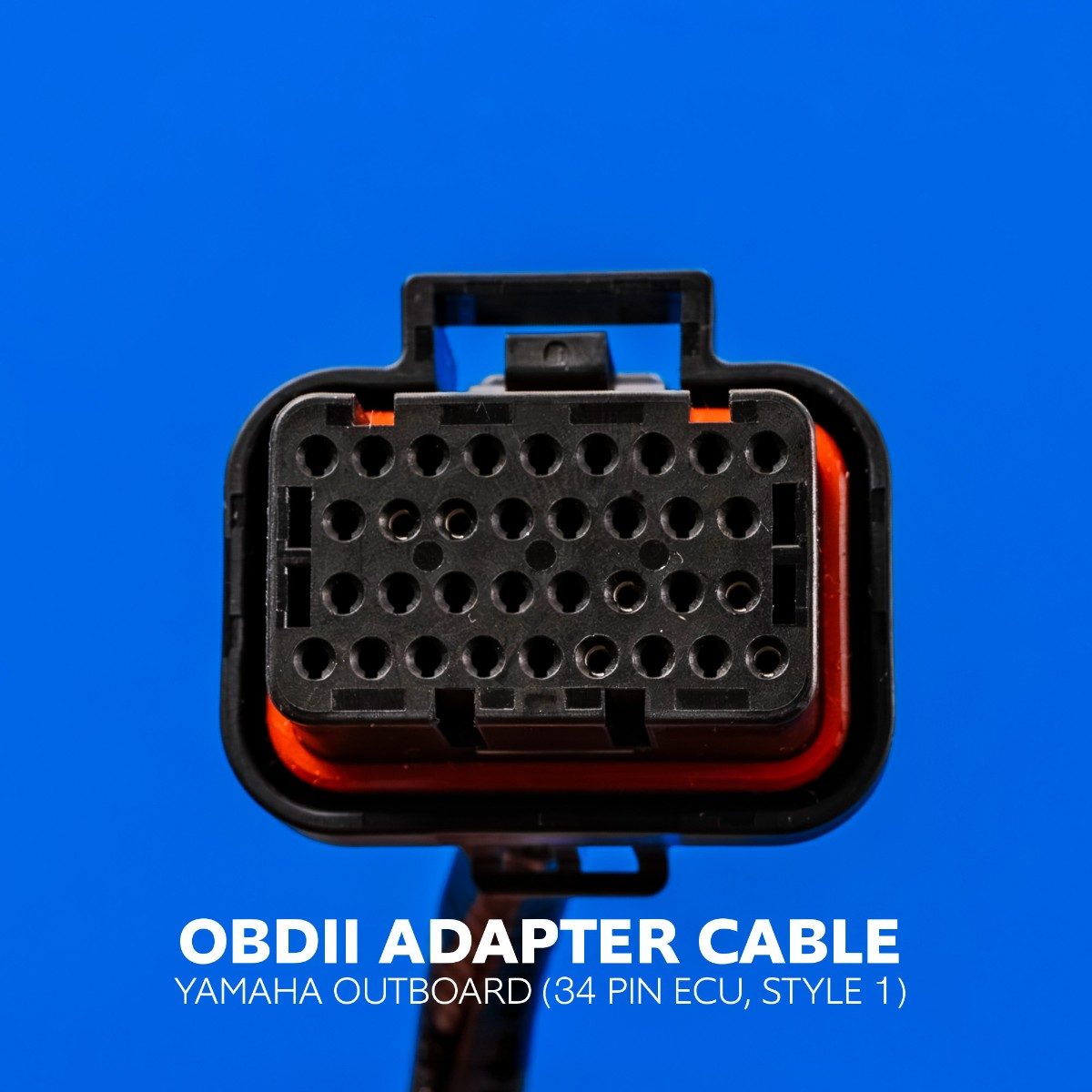

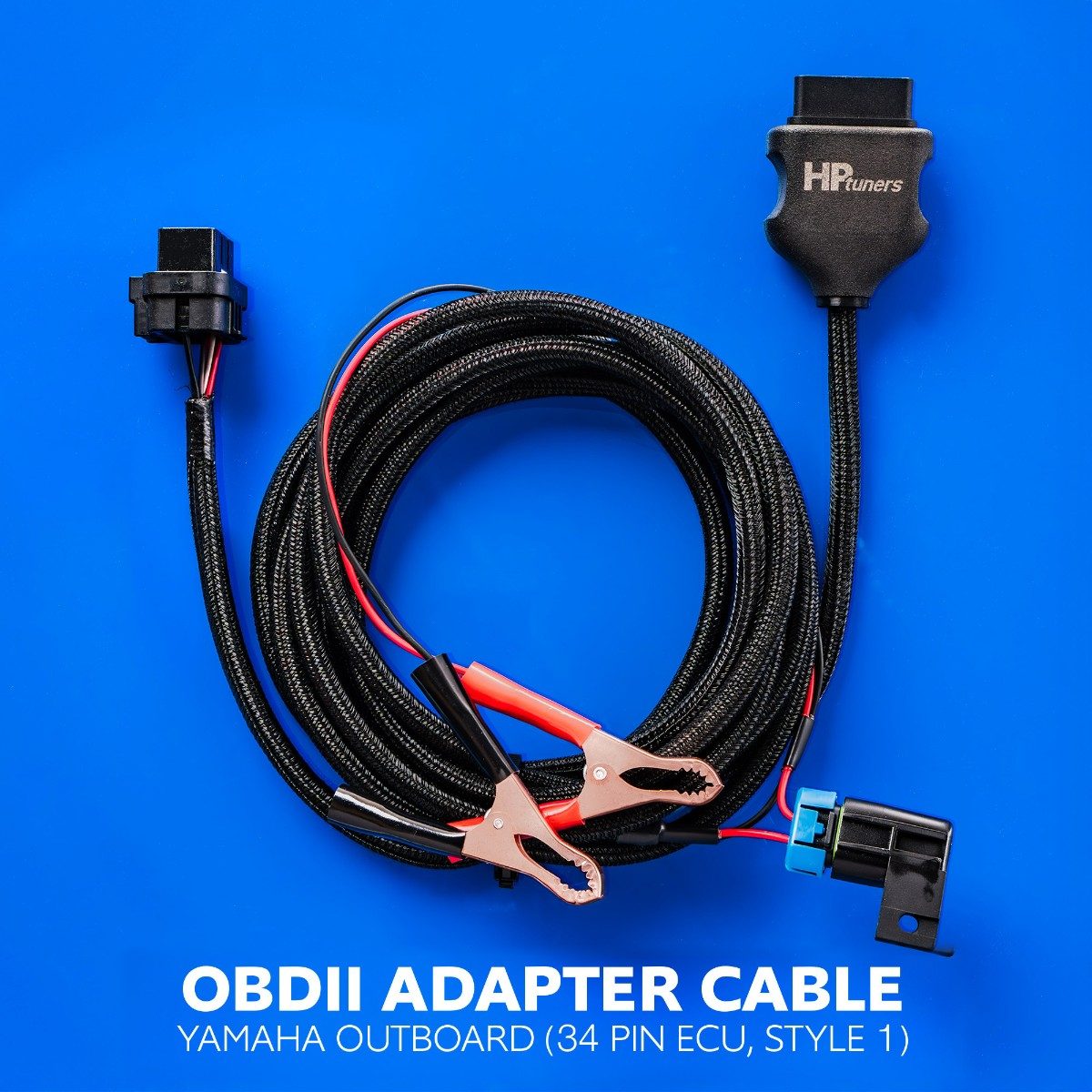

- OBDII Adapter Cable – Yamaha Outboard (34 Pin ECU, Style 1)

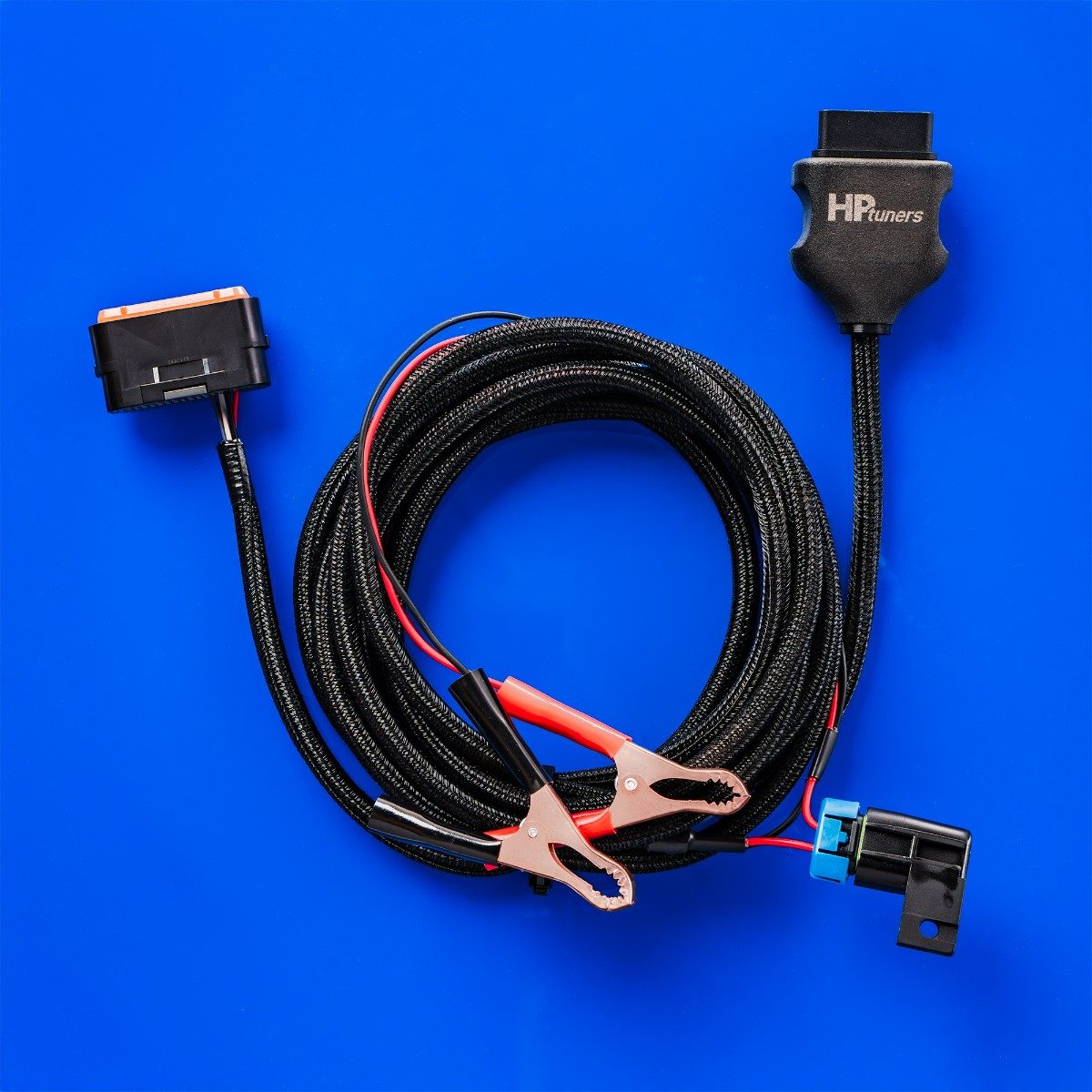

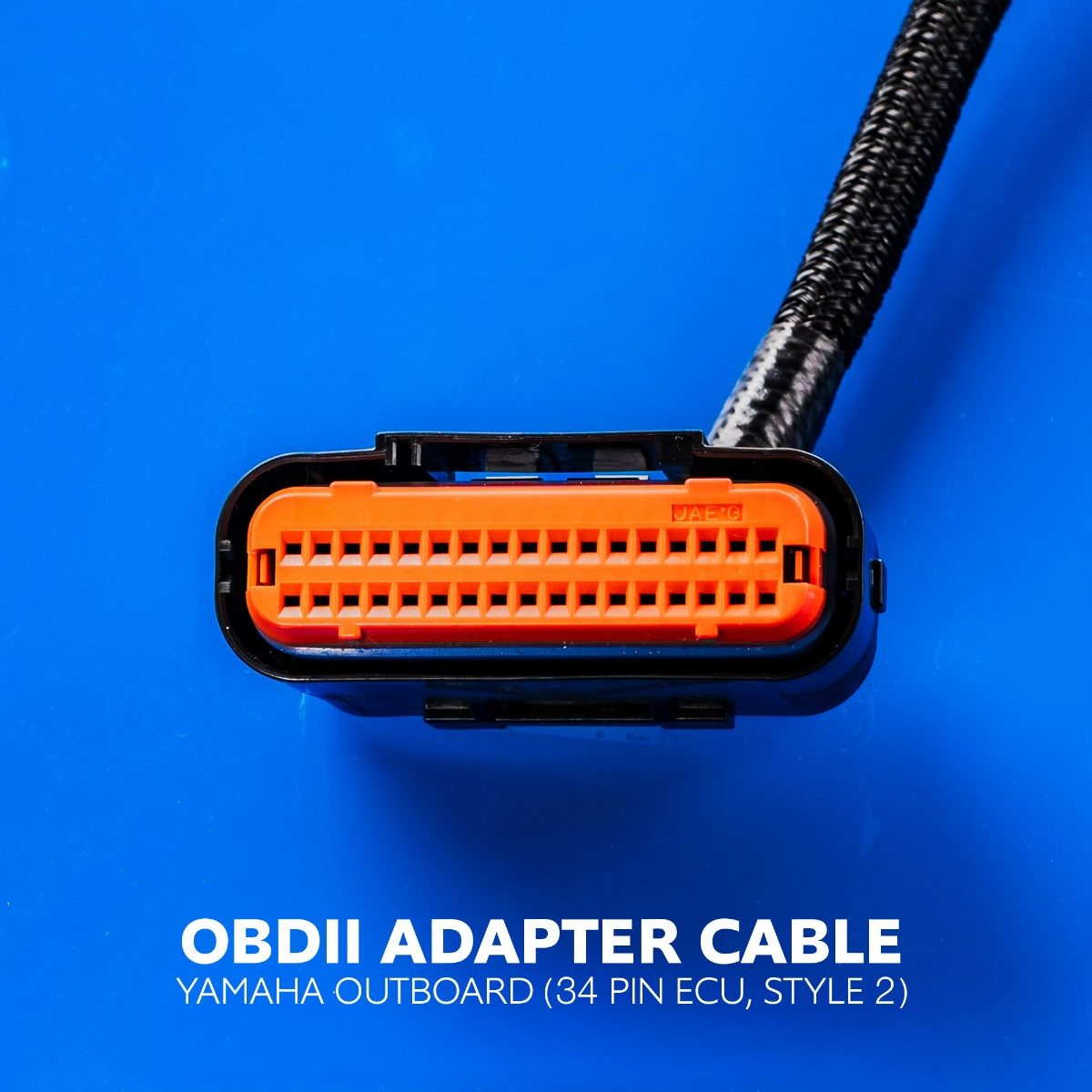

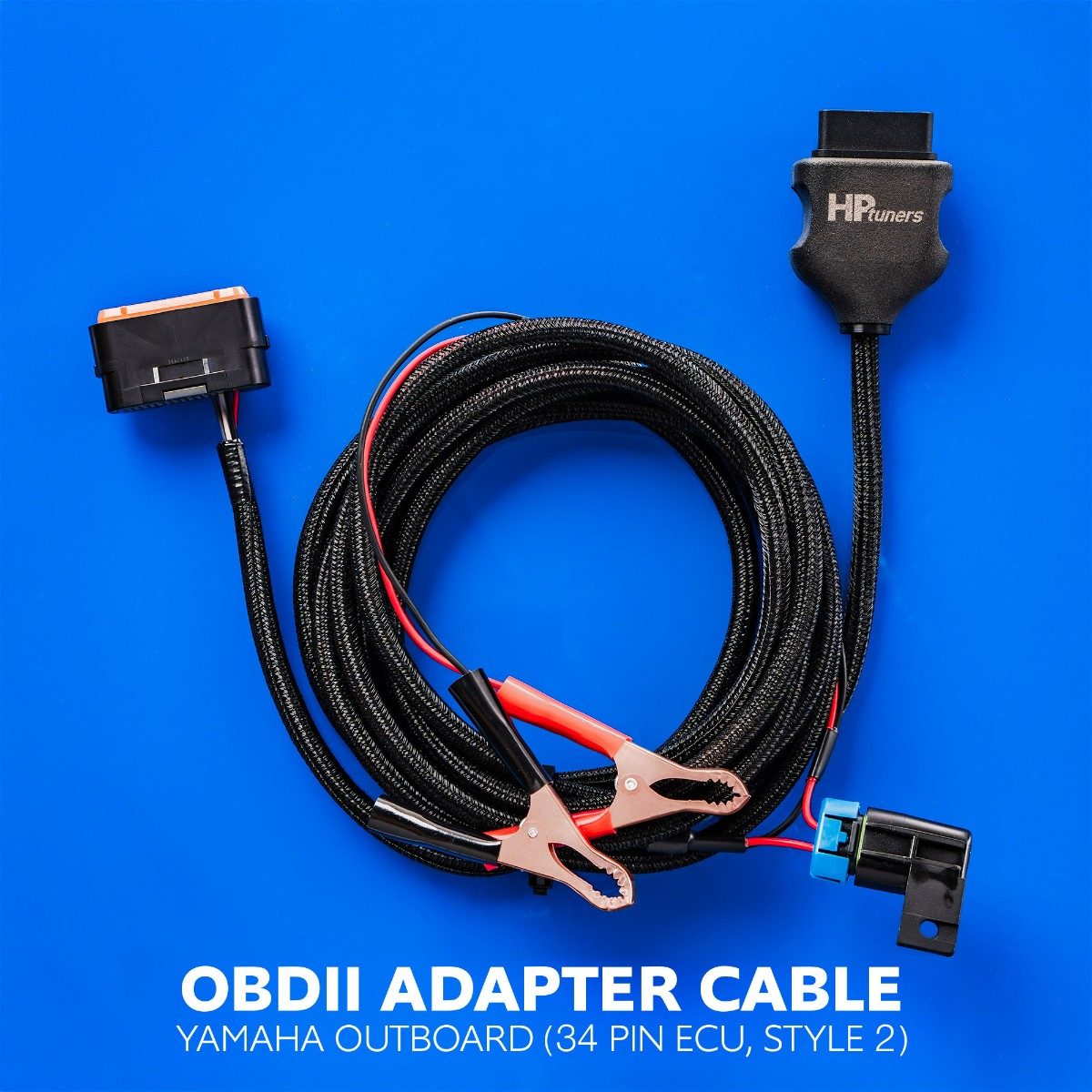

- OBDII Adapter Cable – Yamaha Outboard (34 Pin ECU, Style 2)

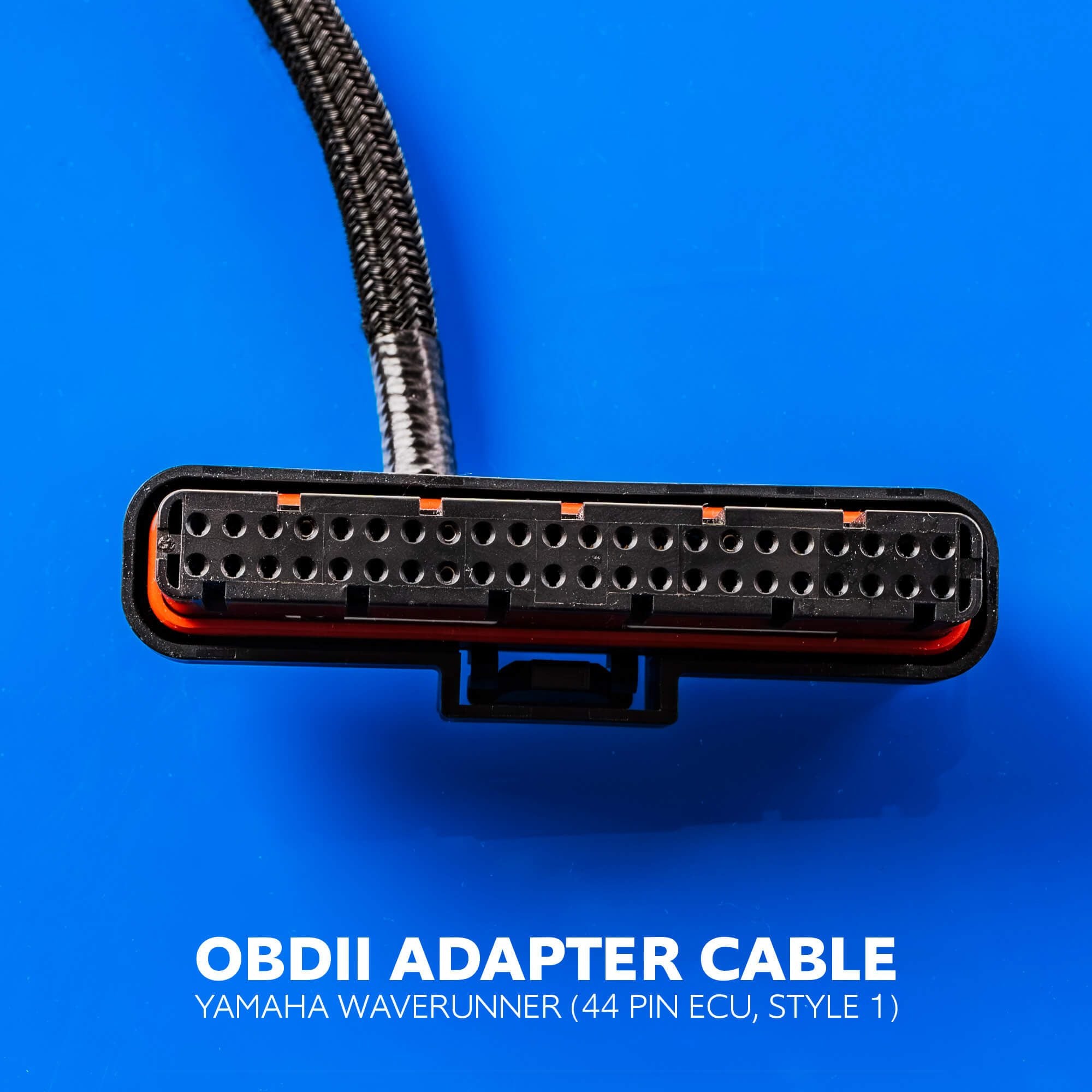

- OBDII Adapter Cable – Yamaha WaveRunner (44 Pin ECU, Style 1)

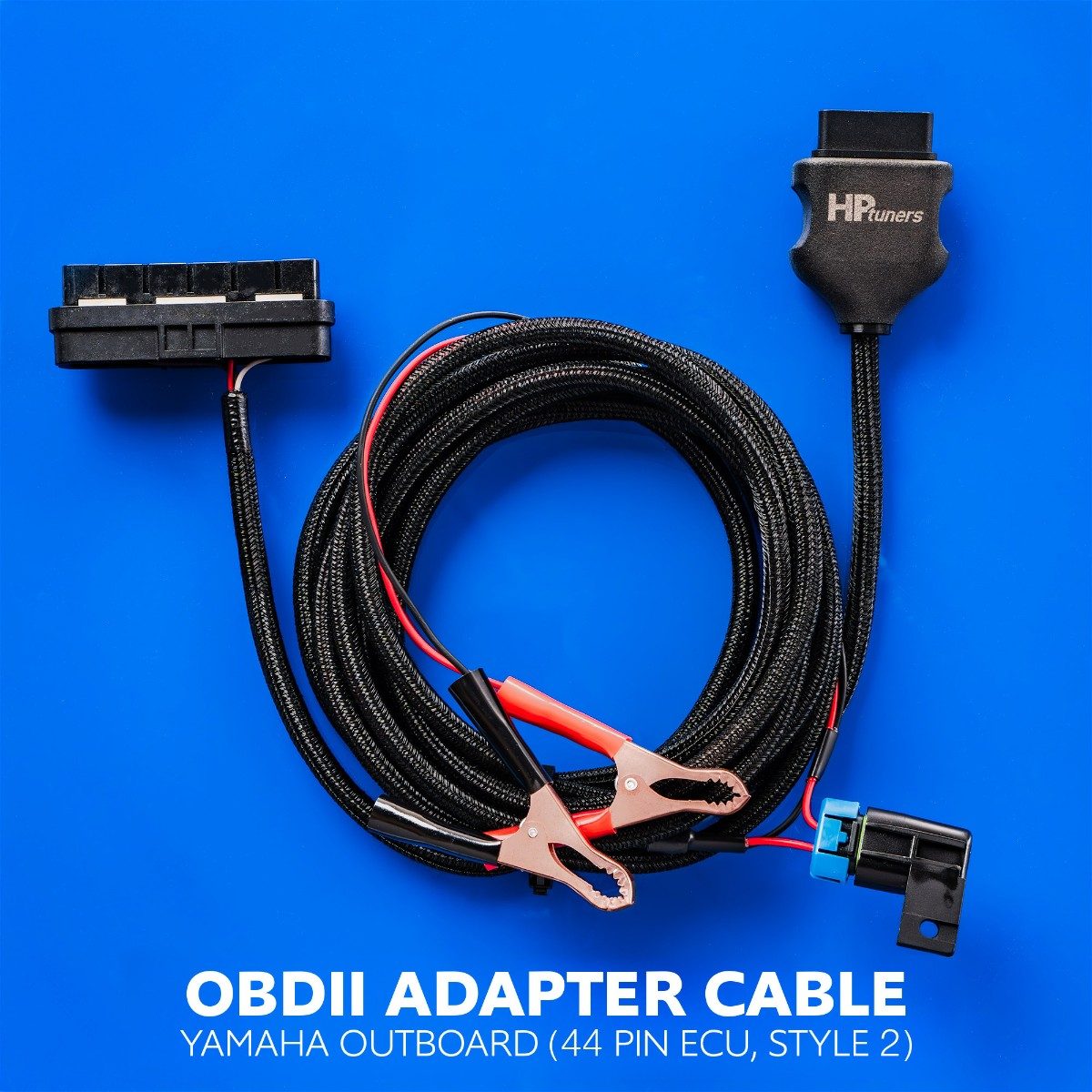

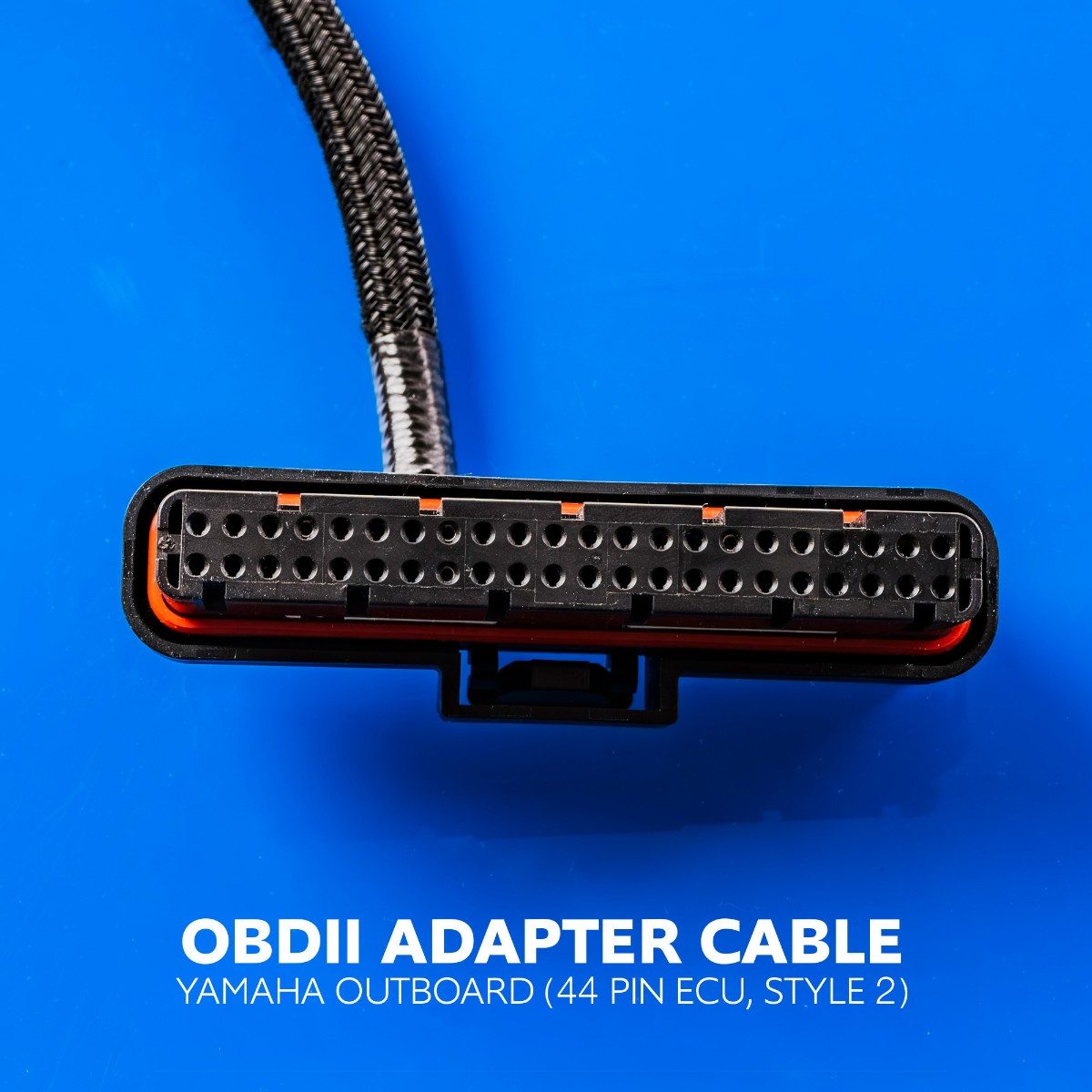

- OBDII Adapter Cable – Yamaha Outboard (44 Pin ECU, Style 2)
Use the dropdown selector to choose the cable that matches your Yamaha engine’s ECM connector.
SUPPORTED APPLICATIONS
These Yamaha outboard engines use the 34-Pin ECU Connector (Style 1) and require the corresponding OBDII Adapter Cable – Yamaha Outboard (34 Pin ECU, Style 1).
Confirm connector type before selecting your cable.
Supported Models:
- 2017-2024 F150 2.8L 6HP
- 2022-2025 F200 2.8L 6LH
- 2013-2024 F200 2.8L 6DV
- 2010-2021 F225 4.2L 6CL
- 2008-2010 F250 3.3L 6BR
- 2010-2021 F250 4.2L 6CG
- 2010-2021 F300 4.2L 6CE
- 2007-2009 F300 4.2L 6BJ
- 2020-2024 F300 4.2L 6KA
- 2007-2019 F350 5.3L 6AW
These Yamaha outboard engines use the 34-Pin ECU Connector (Style 2) and require the OBDII Adapter Cable – Yamaha Outboard (34 Pin ECU, Style 2).
Confirm connector type before selecting your cable.
Supported Models:
- 2005-2025 F50 1.0L 6C1
- 2005-2024 F60 1.0L 6C5
- 2010-2024 F70 1.0L 6CJ
- 2005-2017 F75 1.6L 6D6
- 2005-2017 F90 1.6L 6D8
- 2011-2014 F115 1.8L 68V
- 2014-2025 F115 1.8L 6EK
These Yamaha WaveRunner applications use the 44-Pin ECU Connector (Style 1) and require the OBDII Adapter Cable – Yamaha WaveRunner (44 Pin ECU, Style 1).
Confirm connector type before selecting your cable.
Supported WaveRunner Models:
- 2017-2025 EX 1.0L
- 2018-2025 FX 1.8L
- 2018-2025 VX 1.8L
- 2016-2025 VX 1.0L
- 2018-2025 GP 1.8L
- 2021-2025 Super Jet 1.0L
- 2022-2025 Jet Blaster 1.0L
Supported Jet Boat Applications:
- 2017-2025 190-220 Jet Boat 1.0L (6FV, 6KU)
- 2018-2025 190-275 Jet Boat 1.8L (6AP, 6GN, 6JC)
These Yamaha outboard engines use the 44-Pin ECU Connector (Style 2) and require the OBDII Adapter Cable – Yamaha Outboard (44 Pin ECU, Style 2).
Confirm connector type before selecting your cable.
Supported Models:
- 2005-2010 F115 1.8L 68V
- 2005-2024 F150 2.7L 63P
- 2005-2010 F225 3.3L 69J
KEY FEATURES
Purpose-built Yamaha marine adapter cables
Designed specifically to connect HP Tuners interfaces to supported custom tuning on Yamaha marine ECM.
Integrated ECM power supply
Includes battery alligator clips that provide stable voltage to the ECM during the calibration write process.
Direct connection to supported marine ECMs
Provides reliable communication between MPVI3 or MPVI4 interfaces and Yamaha controllers.
IMPORTANT USAGE NOTES
- These cables are designed for calibration writing only.
- The engine must remain OFF during the calibration write process.
- Stable battery voltage must be maintained during calibration writing.
- Always verify connector style before selecting a cable.
- For diagnostics, use the Yamaha 3-Pin Diagnostic Cable.
Product information
VCM Performance is a proudly Australian-owned family business specialising in high-quality automotive performance products.
From industry-leading OTR air intakes and HP Tuners software to camshafts and Magnuson Heartbeat superchargers, we’re dedicated to helping customers achieve peak vehicle performance. Always innovating, we’re expanding into the European market while staying true to our roots with the Holden Commodore and LS engines.
Track Your Order
You can now use the chat widget on our website to track the status of your order in real time.
Shipping Information
Shipping Details
VCM Performance is committed to processing orders efficiently. We aim to dispatch the majority of orders the next business day. However, please allow 1-2 business days for dispatch. For added convenience, we now offer shipping to PO boxes and parcel lockers.
Once your order has been handed over to the courier, we are unable to make changes. Please contact the chosen courier directly for any modifications or issues related to the shipment of your order.
Shipping Options
We use a range of couriers to provide the best and most efficient delivery service possible. This allows us to choose the optimal shipping method based on the items you purchase. Detailed shipping options and prices will be available for you to view at checkout.
Delivery Times
• Australia Post Express: Estimated delivery within 1-3 business days depending on your location.
• Australia Post Standard: Estimated delivery within 3-10 business days depending on your location.
• In-Store Pickup: Orders can typically be picked up from our store within 1-4 hours from order placement during business hours. Please wait for our confirmation that your order is ready for pickup.
For shipments using alternative couriers, please refer to the respective courier’s website directly for the most up-to-date delivery times as these can frequently change throughout the year.
International Shipping to New Zealand
We offer shipping to New Zealand using DHL and Australia Post Express, with prices quoted at checkout. Duties and taxes are the responsibility of the recipient upon arrival and are not included in the initial purchase or shipping fees.
Order Changes and Cancellations
Once your order has been dispatched, you will receive a confirmation email. At this stage, we are unable to make changes to your order. If you need to cancel or modify your order, please contact us within 24 hours of purchase at sales@vcmperformance.com.au.
Responsibility for Goods
While VCM Performance uses the most reliable and trustworthy carriers, we do not accept responsibility for any goods that are lost, stolen, or damaged once they have been handed over to the courier.
Contact Us
If you do not receive your order within 14 business days from the date of dispatch, please contact us at info@vcmperformance.com.au.
VCM Performance
37-39 Glenvale Cres,
Mulgrave VIC Australia 3170
p:(03) 9763 7599
e: sales@vcmperformance.com.au
Software Support
e: support@vcmperformance.com.au
Yamaha F150
| Model Info | Notes |
|---|---|
| 2017-2024 Yamaha F150 2.8L 6HP | 34-Pin ECU Style 1 |
| 2005-2024 Yamaha F150 2.7L 63P | 44-Pin ECU Style 2 |
Yamaha F200
| Model Info | Notes |
|---|---|
| 2022-2025 Yamaha F200 2.8L 6LH | 34-Pin ECU Style 1 |
| 2013-2024 Yamaha F200 2.8L 6DV | 34-Pin ECU Style 1 |
Yamaha F225
| Model Info | Notes |
|---|---|
| 2010-2021 Yamaha F225 4.2L 6CL | 34-Pin ECU Style 1 |
| 2005-2010 Yamaha F225 3.3L 69J | 44-Pin ECU Style 2 |
Yamaha F250
| Model Info | Notes |
|---|---|
| 2008-2010 Yamaha F250 3.3L 6BR | 34-Pin ECU Style 1 |
| 2010-2021 Yamaha F250 4.2L 6CG | 34-Pin ECU Style 1 |
Yamaha F300
| Model Info | Notes |
|---|---|
| 2010-2021 Yamaha F300 4.2L 6CE | 34-Pin ECU Style 1 |
| 2007-2009 Yamaha F300 4.2L 6BJ | 34-Pin ECU Style 1 |
| 2020-2024 Yamaha F300 4.2L 6KA | 34-Pin ECU Style 1 |
Yamaha F350
| Model Info | Notes |
|---|---|
| 2007-2019 Yamaha F350 5.3L 6AW | 34-Pin ECU Style 1 |
Yamaha F50
| Model Info | Notes |
|---|---|
| 2005-2025 Yamaha F50 1.0L 6C1 | 34-Pin ECU Style 2 |
Yamaha F60
| Model Info | Notes |
|---|---|
| 2005-2024 Yamaha F60 1.0L 6C5 | 34-Pin ECU Style 2 |
Yamaha F70
| Model Info | Notes |
|---|---|
| 2010-2024 Yamaha F70 1.0L 6CJ | 34-Pin ECU Style 2 |
Yamaha F75
| Model Info | Notes |
|---|---|
| 2005-2017 Yamaha F75 1.6L 6D6 | 34-Pin ECU Style 2 |
Yamaha F90
| Model Info | Notes |
|---|---|
| 2005-2017 Yamaha F90 1.6L 6D8 | 34-Pin ECU Style 2 |
Yamaha F115
| Model Info | Notes |
|---|---|
| 2011-2014 Yamaha F115 1.8L 68V | 34-Pin ECU Style 2 |
| 2014-2025 Yamaha F115 1.8L 6EK | 34-Pin ECU Style 2 |
| 2005-2010 Yamaha F115 1.8L 68V | 44-Pin ECU Style 2 |
Yamaha EX
| Model Info | Notes |
|---|---|
| 2017-2025 Yamaha EX WaveRunner 1.0L | 44-Pin ECU Style 1 |
Yamaha FX
| Model Info | Notes |
|---|---|
| 2018-2025 Yamaha FX WaveRunner 1.8L | 44-Pin ECU Style 1 |
Yamaha VX
| Model Info | Notes |
|---|---|
| 2018-2025 Yamaha VX WaveRunner 1.8L | 44-Pin ECU Style 1 |
| 2016-2025 Yamaha VX WaveRunner 1.0L | 44-Pin ECU Style 1 |
Yamaha GP
| Model Info | Notes |
|---|---|
| 2018-2025 Yamaha GP WaveRunner 1.8L | 44-Pin ECU Style 1 |
Yamaha Super
| Model Info | Notes |
|---|---|
| 2021-2025 Yamaha Super Jet WaveRunner 1.0L | 44-Pin ECU Style 1 |
Yamaha Jet
| Model Info | Notes |
|---|---|
| 2022-2025 Yamaha Jet Blaster WaveRunner 1.0L | 44-Pin ECU Style 1 |
Yamaha 190-220
| Model Info | Notes |
|---|---|
| 2017-2025 Yamaha 190-220 Jet Boat 1.0L 6FV 6KU | 44-Pin ECU Style 1 |
Yamaha 190-275
| Model Info | Notes |
|---|---|
| 2018-2025 Yamaha 190-275 Jet Boat 1.8L 6AP 6GN 6JC | 44-Pin ECU Style 1 |
